Filters 450kHz~470kHz (LTZ)

The Low Cost Standard AM Filters (Murata SFZ Compatible). Ceramic filters for AM (LTZ) series are designed to address the needs of standard AM filtering requirements and are recommended for use in low cost products where economically, efficient designs are critical.

DeMint ceramic filters LTZ series for AM conform to the RoHS directive. The LTZ series can be customed designs and tighter tolerances available on request.

Application of ceramic filters specific designs also available including different piezo band-pass devices and Q specifications adjusted to frequency requirements. DeMint ceramic filters can supply you high performance, high quality and stability.

With dimensions (7.0 x 9.0 x 6.5mm), and Insertion Loss 7db, the (LTZ) series is composition of 2 elements direct coupling. Center Frequency (fo) is available in a range of 450kHz ~ 470kHz. The nominal frequency tolerance is ±2kHz.

Custom parts are available on request. DeMint will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information.

Download complete PDF Filters 450kHz~470kHz (LTZ).

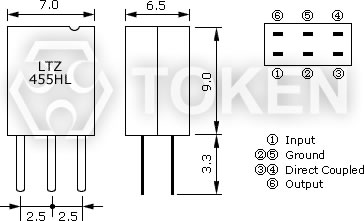

Dimensions (Unit: mm) (LTZ)
(LTZ) Dimensions
(LTZ) Dimensions
Technical Characteristics (LTZ)
(LTZ) Technical Characteristics
(LTZ) Technical Characteristics
Part Number Center Frequency
(fo) (kHz)
3dB Band Width
±9kHz off (dB) min
Insertion Loss
LTZ455HL 455.5±2.0 4.0±1 23 7 2 elements direct
coupling type
LTZ455JL 456.0±2.0 5.5±1 18 7
Center Frequency (fo) is available in a range of 450 ~ 470kHz. The nominal frequency tolerance is ±2kHz.
Recommended IFT (7mm Square) (LTZ)
Item LTZ455HL/JL
Winding Specification

Form bottom
①~② ②~③ ④~⑥
68T 84T 14T
unloaded Qu 90
Tuning Capacity 108PF
Test Circuit (LTZ)
(LTZ) Test Circuit
(LTZ) Test Circuit
Order Codes (LTZ)
Part Number
