Larger Current Common Mode Choke Coils (TCSG) for Power Cord

Some common mode choke coils are applied in circuits linked to AC power lines (commercial power lines), like the primary side of switching power supplies. Common mode choke coils utilized in these locations are frequently known as "line filters".

These common mode choke coils are utilized along with over the line capacitors (X-capacitors) and line bypass capacitors (Y-capacitors), and are utilized to prevent noise generated through the secondary side circuit from dripping towards the primary side, and also to prevent noise generated through the power circuit from getting away through the cord.

Common mode chokes and Line bypass capacitors remove common mode noise, while over-the-line capacitors remove differential mode noise. Growing the capacitance of a line bypass capacitor causes elimination of lower frequency common mode noise, however the chance of current leaking to the ground expands along with the capacitance, to ensure the capacitance need to be detained to a certain value or less.

That is why, common mode choke coils are mostly employed in the low-frequency selection that can not be insured by line bypass capacitors. Additionally, the application of normal mode choke coils are able to provide enhanced differential mode noise removal results in some instances.

DeMint will also produce devices outside these specifications to meet customer requirements, with comprehensive application engineering and design support available for customers worldwide.

Download Complete Datasheet High Current Common Mode Chokes for Power Cord (TCSG) PDF.

Features :
  1. High impedance for common mode noise and low impedance for differential mode signal.
  2. Wide band or sharp type impedance cure available.
  3. Large rated current available.
  4. SMD or DIP available.
Applications :
  1. Prevention of common mode noise on signal Lines and power lines for computer related or electronic products.
Configurations & Dimensions (TCPWCS) Unit: mm

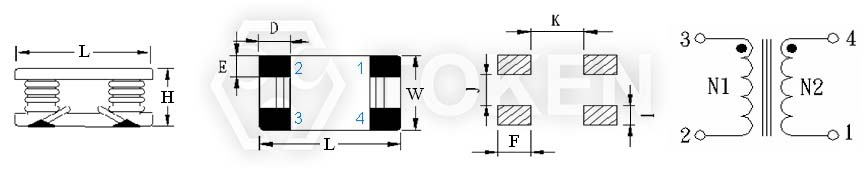

EMI Common mode filter (TCSG) Dimensions
Common mode filter (TCSG) Configurations diagram
Part Number L W H D E F I J K BASE WINDING Z at
100MHz (Ω)
Min.
RATED
CURRENT
(mA)
RDC (Ω)
Max.
TCSG-750603 7.5±0.3 6.0±0.5 3.2±0.3 2.5 1.5 3.1 2.4 1.0 1.5 SMD-4P φ0.35×2.5TS×2 200 2000 0.020
TCSG-100805 10.6 max 8.7 max 5.0±0.5 2.5 2.1 4.2 3.0 2.0 3.6 SMD-4P φ0.55×4.5TS×2 400 4000 0.045
TCSG-121006 12.0±0.5 10.0±0.5 6.0±0.5 3.5 2.0 4.75 4.5 3.0 4.5 SMD-4P φ0.50×4.5TS×2 400 5000 0.025

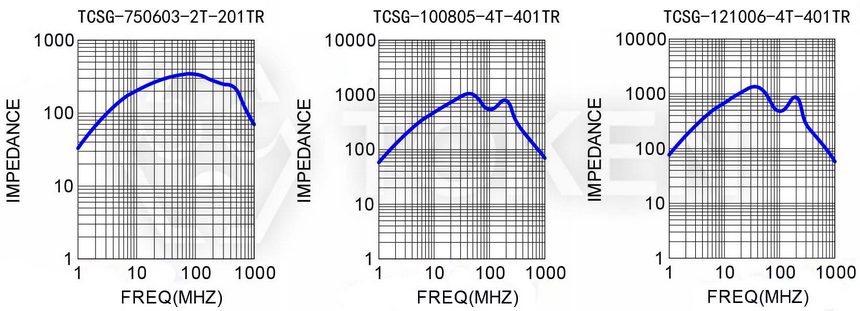

Typical Characteristics Graph (TCSG)
Electrical Characteristics
Order Codes (TCSG)
TCSG - 121006 - 4T - 401 TR

Part Number
TCSG

Dimensions (mm)
750603 7.5×6.0×3.2
100805 10.6×8.7×5.0
121006 12.0×10.0×6.0

Core structure
2T
4T

Impedance (Ω)
201 200Ω
401 400Ω
Package
P Bulk
TR Taping Reel
