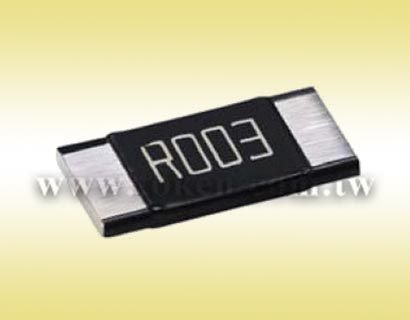

High Power Low Value Current Sensing Chips (LRE) Metal Strip

For current sensing applications, metal strip (metal alloy) resistors provide a more robust technology than thick film and thin film devices. Both thin film and thick film resistor technologies need a ceramic substrate for support.

Power Metal Strip technologies are quite different from thick film or thin film technologies since it is an exciting-metal welded construction that's thick enough to become self-supporting (there's no substrate). It's because the big current transporting mass of the bulk alloy, which supplies greater surge capacity. The ability of power handling capacity offers greater power rating and/or extended really low resistance ranges.

In fast electrical transients such as mechanical switch closures or battery plug-in, the pulse capability of the resistor is limited to the amount of heat energy that causes a temperature rise in the resistor element. The more massive resistor element of the power metal strip device will have less temperature rise for the same pulse energy, which translates to superior pulse withstanding capability.

Unlike other manufacturers of metal element current sense resistors, DeMint (LRE) metal strip chip resistors design for applications that require high power handling (Up to 5W) and low resistance values from 0.25mΩ to 1Ω at ±50 ppm/°C; and come with a range of advantages including a wide temperature range and a varied choice of wide range package sizes 0805/1206/2010/2512/2725/2728/2817/4527 with high current capability.

DeMint (LRE) series enable a wide range of design options and flexibility allows designers to specify the resistance value and tolerance that their circuits require, instead of designing their circuits to the resistance values available. At the same time, DeMint Electronics also offers AEC-Q200 Automotive Grade (LREA) specifications by extending (LRE) series for vehicle applications such as electronic controls (anti-lock brakes, audio electronics, engine and transmission controls, climate controls, etc.).

DeMint Electronics delivers the right chip for your low range, current-sense applications. For more detailed product information and data sheets or to discuss your specific requirements please contact DeMint Electronics. Downloads Complete Specification PDF High Power Current Sensing Metal Strip Chip Resistors (LRE).

Features :
  1. High power rating up to 5 Watts. Low TCR down to ±50 ppm/°C.
  2. Resistance values from 0.25m to 1 Ohm. Customized resistance available.
  3. Wide range package sizes 0805/1206/2010/2512/2725/2728/2817/4527.
Applications :
  1. Power Management for NB, MB, Monitor.
  2. SWPS DC-DC Converter, Charger, Adaptor, Power Supplies.
  3. Hard Disk Drives: Solid-state hard drives (SSD), Solid-state hybrid drives (SSHD).
Construction :
  1. The resistive layer is covered with a protective coat, and two external end terminations are added.
  2. Internal metal electrodes are added at each end and connected by a resistive paste that is applied to the top surface of the metal alloy.
  3. Wrap-around terminations have an electroplated nickel barrier and pure Tin (lead free) or matte-tin finish, ensuring excellent "leach" resistance properties and solderability.

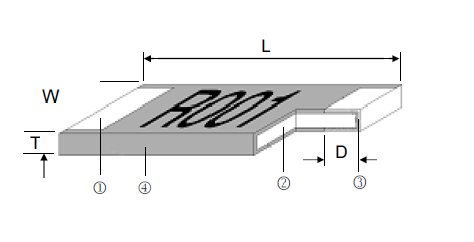

Metal Strip Chip (LRE) Construction & Dimensions
Metal Strip Current Sensing Chip (LRE) Construction & Dimensions
Metal Strip Current Sensing Chip (LRE) Construction & Dimensions
1 Solder Plating (Sn)
2 Alloy Plate
3 Barrier Layer (Cu, Ni)
4 Overcoat
Type Power Rating at 70 (W) Resistance Range (mΩ) Dimensions (Unit: mm)
L W T D
LRE0805 0.75 3.0 ~ 100.0 2.100±0.254 1.500±0.254 0.320±0.254 0.400±0.254
1.0 3.0 ~ 10.0
LRE1206 0.5 51.0 ~ 100.0 3.200±0.254 1.650±0.254 0.300±0.254 0.508±0.254
0.75 21.0 ~50.0 0.390±0.254
1.0 1.0~2.0 0.670±0.254
3.0~100.0 0.490±0.254
1.5 1.0~2.0 0.670±0.254
3.0~100.0 0.490±0.254
LRE2010 0.75 71.0~100.0 5.100±0.254 2.400±0.254 0.310±0.254 0.840±0.254
1 31.0~70.0 0.460±0.254
1.5 1.0~2.0 0.670±0.254
2.5~30.0 0.460±0.254
31.0~100.0 0.590±0.254
LRE2512 1 0.5~1.0 6.350±0.254 3.050±0.254 0.670±0.254 2.200±0.254
1.5 0.560±0.254 2.000±0.254
2.0 1.400±0.254
2.5~100.0 1.100±0.254
101.0~680.0 0.490±0.254 0.850±0.254
2 0.5~1.0 0.670±0.254 2.200±0.254
1.5 0.560±0.254 2.000±0.254
2.0 1.400±0.254
2.5~100.0 1.100±0.254
101.0~450.0 0.610±0.254 0.850±0.254
3 0.5~1.0 6.350±0.254 3.050±0.254 0.670±0.254 2.200±0.254
1.5 2.000±0.254
2.0 1.400±0.254
2.5~50.0 1.100±0.254
51.0~100.0 0.740±0.254
LRE2725 4 0.25 6.800±0.254 6.350±0.254 0.820±0.254 2.300±0.254
0.5 0.690±0.254
1 0.690±0.254 1.800±0.254
1.5~3.0 0.610±0.254
LRE2728 4 4.0~50.0 6.600±0.254 6.700±0.254 0.720±0.254 1.200±0.254
51.0~450.0 0.840±0.254
451.0~600.0 0.770±0.254
LRE2817 3 1.0 7.300±0.254 4.400±0.254 0.690±0.254 1.800±0.254
2.0~30.0 0.610±0.254 1.500±0.254
31.0~100.0 0.720±0.254
101.0~130.0 0.770±0.254
131.0~200.0 0.690±0.254
LRE4527 3 501.0~680.0 11.300±0.500 6.600±0.500 0.770±0.254 2.000±0.254
681.0m~1.0R 0.690±0.254
5 1.0 0.790±0.254 3.000±0.254
1.5 0.840±0.254 2.000±0.254
2.0~500.0 0.840±0.254
Current Sensing Metal Strip Chip (LRE) Electrical Specifications
Type Max. Rating Power (W) Max. Rating Current (A)* Max. Overload Current (A) Resistance Range (mΩ)* TCR (ppm/°C) Operating Temperature (°C)
D (±0.5%) F (±1%);
G (±2%);
J (±5%)
LRE0805 0.75 15.81 31.62 10.0~100.0 3.0~100.0 ±50 -55~+170°C
1 18.26 36.51 10.0 3.0~10.0
LRE1206 0.50 3.13 6.26 51.0~100.0 51.0~100.0
0.75 5.98 11.95 21.0~50.0 21.0~50.0
1 31.62 63.25 7.0~100.0 1.0~100.0
1.5 38.73 67.08 7.0~100.0 1.0~100.0
LRE2010 0.75 3.25 7.27 71.0~100.0 71.0~100.0
1 5.68 12.70 31.0~70.0 31.0~70.0
1.5 38.73 77.46 7.0~100.0 1.0~100.0
LRE2512 1 44.72 100.00 7.0~680.0 0.5~680.0
2 63.25 141.42 7.0~450.0 0.5~450.0
3 77.46 134.16 7.0~100.0 0.5~100.0
LRE2725 4 126.49 252.98 -- 0.25~3.0
LRE2728 4 31.62 54.77 7.0~600.0 4.0~600.0
LRE2817 3 54.77 109.54 7.0~200.0 1.0~200.0
LRE4527 3 2.45 4.24 501m~1.0R 501m~1.0R
5 70.71 122.47 7.0~500.0 1.0~500.0
  • Note: Rating Current I= ( P / R ) or Max. Rating Current whichever is lower.
  • Special tolerance and range of resistance are under requested.
Metal Strip Chip (LRE) Recommend Land Pattern
Metal Strip Chip (LRE) Recommend Land Pattern
Metal Strip Chip (LRE) Recommend Land Pattern
Type Maximum Power Rating (Watts) Resistance Range (mΩ) Dimensions (mm)
a b i
LRE0805 0.75 3.0 ~ 100.0 1.80 2.18 0.66
1.0 3.0 ~ 10.0 1.80 2.18 0.66
LRE1206 0.5 & 0.75 & 1.0 & 1.5 1.0 ~ 100.0 1.60 2.18 0.66
LRE2010 0.75 & 1.0 & 1.5 1.0 ~ 3.0 2.89 2.92 1.22
3.1 ~ 100.0 2.29 2.92 2.41
LRE2512 1.0 & 2.0 & 3.0 0.5 ~1.5 3.05 3.68 1.27
2.0 ~ 3.5 2.11 3.68 3.18
3.6 ~ 680.0 1.90 3.68 3.50
LRE2725 4.0 0.25 ~ 0.5 3.18 6.86 1.32
4.0 1.0 ~ 3.0 2.34 6.86 3.00
LRE2728 4.0 4.0 ~600.0 2.75 7.82 3.51
LRE2817 3.0 1.0 ~ 3.0 2.75 7.82 3.51
3.0 3.5 ~200.0 2.45 7.82 3.11
LRE4527 3.0 & 5.0 1.0 ~ 3.0 4.50 8.74 4.50
3.5 ~100.0 3.4 8.74 6.43
101.0m ~ 1R 2.93 8.74 7.63

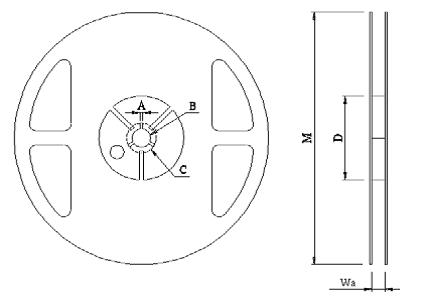

Reel Specifications (LRE) Unit: mm
Reel Specifications Dimensions
Reel Specifications Dimensions
Reel Type / Tape W M A B C D
7” reel for 8 mm embossed (LRE0805 & 1206 series only) 12.00± 0.5 178 ± 1.0 2.0 ± 0.5 13.2 ± 0.5 17.7 ± 0.5 60.0 ± 0.5
7” reel for 12 mm embossed   16.2 ± 0.5 178 ± 1.0 2.5 ± 0.5 13.5 ± 0.5 17.7 ± 0.5 60.0 ± 0.5
7” reel for 24 mm embossed (LRE4527 series only) 24.4 +2/-0 178 ± 1.0 2.0 ± 0.5 13.2 ± 0.5 17.7 ± 0.5 60.0 ± 0.5

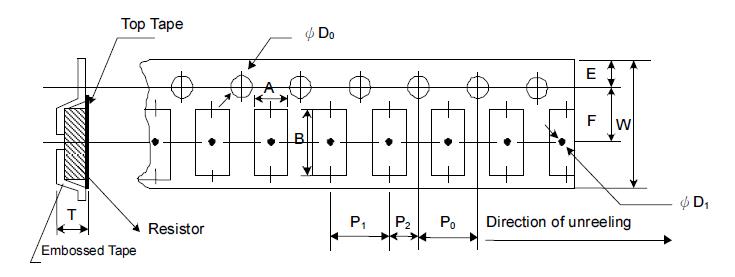

Emboss Plastic Tape Specifications (LRE) Unit: mm
(LRE) Emboss Plastic Tape Specifications
Low Ohm Metal Strip (LRE) Emboss Plastic Tape Specifications
Type A±0.1 B±0.1 W±0.3 E±0.1 F±0.1 P0±0.1 P1±0.3 P2±0.1 ΦD0±0.05 ΦD1±0.1 T±0.1
LRE0805 1.70 2.45 8.0 1.75 3.5 4.0 4.0 2.0 1.55 1.00 0.50
LRE1206 2.03 3.55 8.0 1.75 3.5 4.0 4.0 2.0 1.55 1.00 0.70
LRE2010 2.85 5.55 12.0 1.75 5.5 4.0 4.0 2.0 1.55 1.55 0.82
LRE2512 3.50 6.75 12.0 1.75 5.5 4.0 4.0 2.0 1.55 1.55 0.90
LRE2725 6.81 7.16 12.0 1.75 5.5 4.0 8.0 2.0 1.55 1.55 1.05
LRE2728 7.10 7.05 12.0 1.75 5.5 4.0 8.0 2.0 1.55 1.55 0.95
LRE2817 4.60 7.50 12.0 1.75 5.5 4.0 8.0 2.0 1.55 1.55 1.20
LRE4527 7.38 12.0 24.0 1.75 11.5 4.0 12.0 2.0 1.55 1.55 1.05
  1. The cumulative tolerance of 10 sprockets hole pitch is ± 0.2mm.
  2. Carrier camber shall be not more than 1mm per 100mm through a length of 250mm.
  3. A & B measured 0.3mm from the bottom of the packet
  4. T measured at a point on the inside bottom of the packet to the top surface of the carrier.
  5. Pocket position relative to sprocket hole is measured as the true position of the pocket and not the pocket hole.

Packaging Quantity (LRE)
Type Tape Width Diameter Pieces/Reel
LRE0805 8 mm/embossed plastic 178 mm/7” 5,000
LRE1206 8 mm/embossed plastic 178 mm/7” 5,000
LRE2010 12 mm/embossed plastic 178 mm/7” 4,000
LRE2512 12 mm/embossed plastic 178 mm/7” 4,000
LRE2725 12 mm/embossed plastic 178 mm/7” 2,000
LRE2728 12 mm/embossed plastic 178 mm/7” 2,000
LRE2817 12 mm/embossed plastic 178 mm/7” 1,000
LRE4527 24 mm/embossed plastic 178 mm/7” 1,000

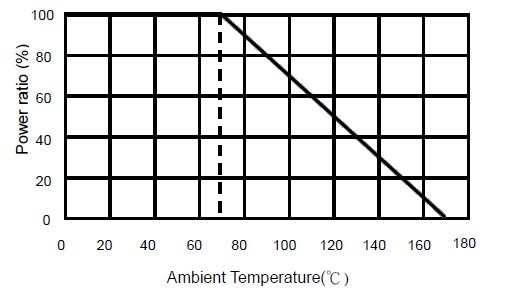

Derating Curve (LRE)
Reflow soldering

Soldering Condition (Reflow soldering only) (LRE)
Reflow soldering
Environmental Characteristics (LRE)
Item Requirement Test Method
Temperature Coefficient of Resistance (T.C.R.) As Spec. JIS C 5201-1 4.8 +25/+125°C
Short Time Overload LRE4527: ΔR/R0≤±2.0% The others: ΔR/R0≤±0.5% JIS C 5201-1 4.13 Rating power duration: 5secs.
Type Power Multiple
LRE0805 0.75W, 1.0W 4 times
LRE1206 0.5W, 0.75W, 1.0W 4 times
LRE1206 1.5W 3 times
LRE2010 0.75W, 1.0W 5 times
LRE2010 1.5W 4 times
LRE2512 1.0W, 2.0W, 3.0W 5 times
LRE2725 4.0W 4 times
LRE2728 4.0W 3 times
LRE2817 3.0W 4 times
LRE4527 3.0W, 5.0W 3 times
Solderability 95% Min. coverage JIS-C5201-1 4.17 245±5°C for 3 seconds
Resistance to Soldering Heat ΔR/R0≤± 0.5% JIS-C5201-1 4.18 260±5°C for 10 seconds
Temperature Cycling ΔR/R0≤± 0.5% JIS-C5201-1 4.19 -55°C ~ 150°C, 100 cycles
Bias Humidity ΔR/R0≤± 0.5% JIS-C5201-1 4.24 +85°C/85%RH for 1,000Hrs. with 1.5Hrs “ON”, 0.5Hr “OFF”.
High Temperature Exposure (Storage) LRE4527: ΔR/R0≤±2.0% The others: ΔR/R0≤±1.0% JIS-C5201-1 4.23.2 +170°C for 1000 Hrs.
Load Life LRE4527: ΔR/R0≤±2.0% The others: ΔR/R0≤±1.0% JIS-C5201-1 4.25 70±2°C, RCWV for 1000 Hrs. with 1.5 Hrs. “ON” and 0.5 Hr. “OFF”
Order Codes (LRC)
LRE 2728 F TR D 4 R010
Part Number
LRE
Dimensions
(L×W) (mm)
0805 2.10x1.50
1206 3.20×1.65
2010 5.10×2.40
2512 6.35×3.05
2725 6.80x6.35
2728 6.60x6.70
2817 7.30x4.40
4527 11.30x6.60
Resistance
Tolerance (%)
J ±5%
G ±2%
F ±1%
D ±0.5%
Package
TR Taping Reel
TCR (PPM/°C)
D ±50ppm/°C
W ±75ppm/°C
E ±100ppm/°C
K ±150ppm/°C
F ±200ppm/°C
Power Rating (W)
U 0.5W
Q 0.75W
T 1W
A 1.5W
S 2W
R 3W
4 4W
5 5W
Resistance (Ω)
Ex:
0m50 0.00050Ω
0m75 0.00075Ω
1m50 0.00150Ω
R002 0.00200Ω
R010 0.01000Ω
R100 0.10000Ω
Marking
  Black Coating
*0805 No Marking

  • Note: There is no marking on 0805 series.
