Low Ohmic Open Air Resistors (LRB)

DeMint's open-air, low inductance, low ohmic resistor is alternative current shunts.

Developed for current sensing and shunt applications, DeMint's LRB series of bare element resistors have a precision alloys (Ni-Cu) element welded construction. Built-in stand-offs and standard spacings make for easy mounting.

The bare metal element design allows for maximum cooling via airflow, forcing less heat into the PCB. The flameproof construction offers values down to 2mΩ with low inductance. Customer can specify resistance range designed to satisfy challenging and specific technical requirements.

These factors make the LRB Series an outstanding choice for all types of high current power supplies and power applications requiring a robust part that is impervious to most environmental stresses. The device is ideal for current limited, Current balance, and sampling sense in power supplier. It takes on the capability of high overload, and the function easily welding and non inductance as well.

The Open Air (LRB) Low Ohmic Value Resistor is available in bulk packaging and is RoHS compliant and lead free. For non-standard technical requirements and special applications, contact us with your specific needs. Download PDF Specification Open Air Low Inductance Low Ohmic Resistors (LRB).

Features :
  1. Low inductance.
  2. High stability open-air style.
  3. Precision alloys resistive element.
  4. Lead (Pb)-free and RoHS compliant.
  5. Standard tolerance ±3%, ±5%, ±10%.
  6. Radial leads, low resistance value 2 mΩ ~ 50 mΩ.
Applications :
  1. CPU Drive Control.
  2. Automotive, Feedback System.
  3. Residual Battery Power Detection, and Current Sensing.
  4. Power Supply Shunt, Current Detective.
  5. Inverter and Switching Power Supplies.
  6. Power Tool Motor controls.
Dimensions (Unit: mm) (LRB)

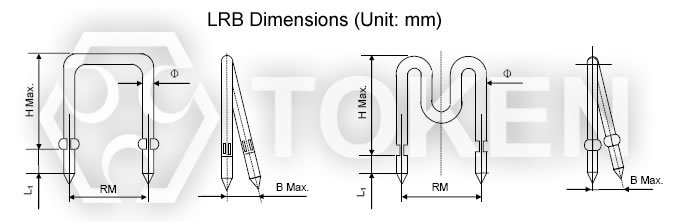

Current Sensing Open Air Resistors (LRB) Dimensions
Current Sensing Open Air Resistors (LRB) Dimensions
RM (mm) H Max. (mm) B Max. (mm) Ø (mm) L1 (mm)
5 ~ 50 20 1 5 ~ 29 3±0.5
Specification (LRB)
Type Diameter Ø (mm) Rated Current (A) Resistance Range (mΩ) Tolerance (%) Temperature Coefficient (ppm/°C) Temperature Range (°C)
LRB-05 0.5 2.5 20~50 ±3%(H)
±5%(J)
±10%(K)
±50 ~ ±100 -55 ~ +85
LRB-06 0.6 3.0 20~50
LRB-07 0.7 4.0 20~50
LRB-08 0.8 4.5 20~50
LRB-09 0.9 5.0 10~50
LRB-10 1.0 5.5 10~30
LRB-11 1.1 6.0 5~20
LRB-12 1.2 7.0 5~20
LRB-13 1.3 7.5 5~20
LRB-14 1.4 8.0 5~20
LRB-15 1.5 9.0 5~20
LRB-16 1.6 9.5 5~15
LRB-18 1.8 11 3~10
LRB-20 2.0 12 2~8
LRB-23 2.3 14 2~8
LRB-25 2.5 17 2~5
LRB-29 2.9 21 2~5
Order Codes (LRB)
LRB - 08 05 R005 K P

Part Type
LRB

Diameter Ø
05 0.5 mm
06 0.6 mm
07 0.7 mm
08 0.8 mm
09 0.9 mm
10 1.0 mm
11 1.1 mm
12 1.2 mm
13 1.3 mm
14 1.4 mm
15 1.5 mm
16 1.6 mm
17 1.7 mm
18 1.8 mm
20 2.0 mm
23 2.3 mm
25 2.5 mm
29 2.9 mm
Leads Pitch RM (mm)
05 5 mm
10 10 mm
15 15 mm
20 20 mm
25 25 mm
30 30 mm
35 35 mm
40 40 mm
45 45 mm
50 50 mm
Resistance (Ω)
R005 0.005Ω
R02 0.02Ω
R05 0.05Ω
Tolerance %
H ±3%
J ±5%
K ±10%
Package
P Bulk
