High Current Integrated Inductor (TCDY)
Today's electronics have grown to be more and more power hungry and therefore are operating at greater switching frequencies, depriving for speed and shrinking in dimensions as nothing you've seen prior. Inductors really are a fundamental aspect in the current regulator topology, and just about any circuit that regulates power in automobiles, industrial and electronic devices, and DC-DC converters requires an inductor. Conventional inductor technologies have been falling behind in meeting our prime performance need for these advanced electronics. Consequently, DeMint is promoting several inductor models with rated DC current as much as 40 A to satisfy the difficulties from the market.
The Nickel Core Integrated Inductor (TCDY) measure high current rating up to DC 40 Amp., frequency high up to 1.0MHz with low DC resistance. Three compact sizes are available, 8.2mm x 8.2mm, 10.2mm x 10.2mm, 和 12.5mm x 12.5mm. Making them ideally for today's DC/DC converter in distributed power systems or VRM, and motherboards for laptop and desdtop computers applications.
The (TCDY) inductors are RoHS compliant and meet standard requirements. Custom parts are available on request. DeMint will also produce devices outside these specifications to meet specific customer requirements, contact our sales for more information.
Download complete specification High Current Integrated Inductor (TCDY) PDF.
- Ultra low cost.
- Shielded construotion.
- High current rating up to DC 40 Amp.
- High frequency range up to 1.0MHz.
- Very low DC resistance.
- All lead-free.(RoHS).
- Motherboards for laptop and desdtop computers.
- DC/DC converter in distributed power systems or VRM Applications. Inductor for general purpose use.
| Configurations & Dimensions (Unit: mm) (TCDY0806/1108/1310) | ||

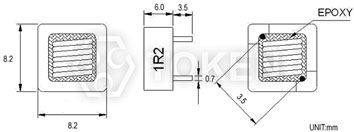

| TCDY0806 |
|
 |

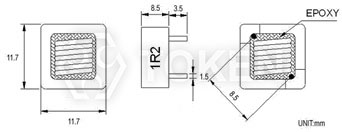

| TCDY1108 |
|
 |
| TCDY1310 |
|
 |
| Electrical Characteristics (TCDY0806) | ||||
| Part No | L (µH) | DCR Max. (mΩ) | IDC Max. (A) | Test Freq. (Hz) |
| TCDY0806-R47M | 0.47 | 1.9 | 22.0 | 1.0/100k |
| TCDY0806-R60M | 0.60 | 1.9 | 21.0 | 1.0/100k |
| TCDY0806-R80M | 0.80 | 2.9 | 17.0 | 1.0/100k |
| TCDY0806-1R0M | 1.00 | 4.3 | 14.0 | 1.0/100k |
- Inductance tested at 100KHz , 0.1V.
- Inductance drop = 10% typ. at rated isat.
- Δ T = 40 °C rise typ. at irms.
- Operating temperature range -40 °C to +125 °C.
- Electrical specifitions at +25 °C.
| Electrical Characteristics (TCDY1108) | ||||
| Part No | L (µH) | DCR Max. (mΩ) | IDC Max. (A) | Test Freq. (Hz) |
| TCDY1108-R47MB | 0.47 | 0.8 | 38.0 | 100k/0.1v |
| TCDY1108-R60MB | 0.60 | 0.8 | 38.0 | 100k/0.1v |
| TCDY1108-R80MB | 0.80 | 1.3 | 31.0 | 100k/0.1v |
| TCDY1108-1R0MB | 1.00 | 1.3 | 31.0 | 100k/0.1v |
| TCDY1108-1R5MB | 1.50 | 1.8 | 26.0 | 100k/0.1v |
| TCDY1108-2R0MB | 2.00 | 3.3 | 20.0 | 100k/0.1v |
| TCDY1108-3R3MB | 3.30 | 6.3 | 14.0 | 100k/0.1v |
- Inductance tested at 100KHz , 0.1V.
- Inductance drop = 10% typ. at rated isat.
- Δ T = 40 °C rise typ. at irms.
- Operating temperature range -40 °C to +125 °C.
- Electrical specifitions at +25 °C.
| Electrical Characteristics (TCDY1310) | ||||
| Part No | L (µH) | DCR Max. (mΩ) | IDC Max. (A) | Test Freq. (Hz) |
| TCDY1310-R47MB | 0.47 | 0.75 | 40 | 100k/0.1v |
| TCDY1310-R60MB | 0.60 | 0.75 | 40 | 100k/0.1v |
| TCDY1310-R80MB | 0.80 | 0.75 | 39 | 100k/0.1v |
| TCDY1310-1R0MB | 1.0 | 1.15 | 32 | 100k/0.1v |
| TCDY1310-1R5MB | 1.5 | 1.85 | 26 | 100k/0.1v |
| TCDY1310-2R0MB | 2.0 | 3.0 | 21 | 100k/0.1v |
| TCDY1310-2R4MB | 2.4 | 3.0 | 20 | 100k/0.1v |
| TCDY1310-3R3MB | 3.3 | 4.3 | 17 | 100k/0.1v |
- Inductance tested at 100KHz , 0.1V.
- Inductance drop = 10% typ. at rated isat.
- Δ T = 40 °C rise typ. at irms.
- Operating temperature range -40 °C to +125 °C.
- Electrical specifitions at +25 °C.
| Order Codes (TCDY) | ||||||||||||||||||||||||||||||||||
| TCDY | 1310 | - | R22 | M | ||||||||||||||||||||||||||||||
 | | | | |||||||||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||||||||
